Front view

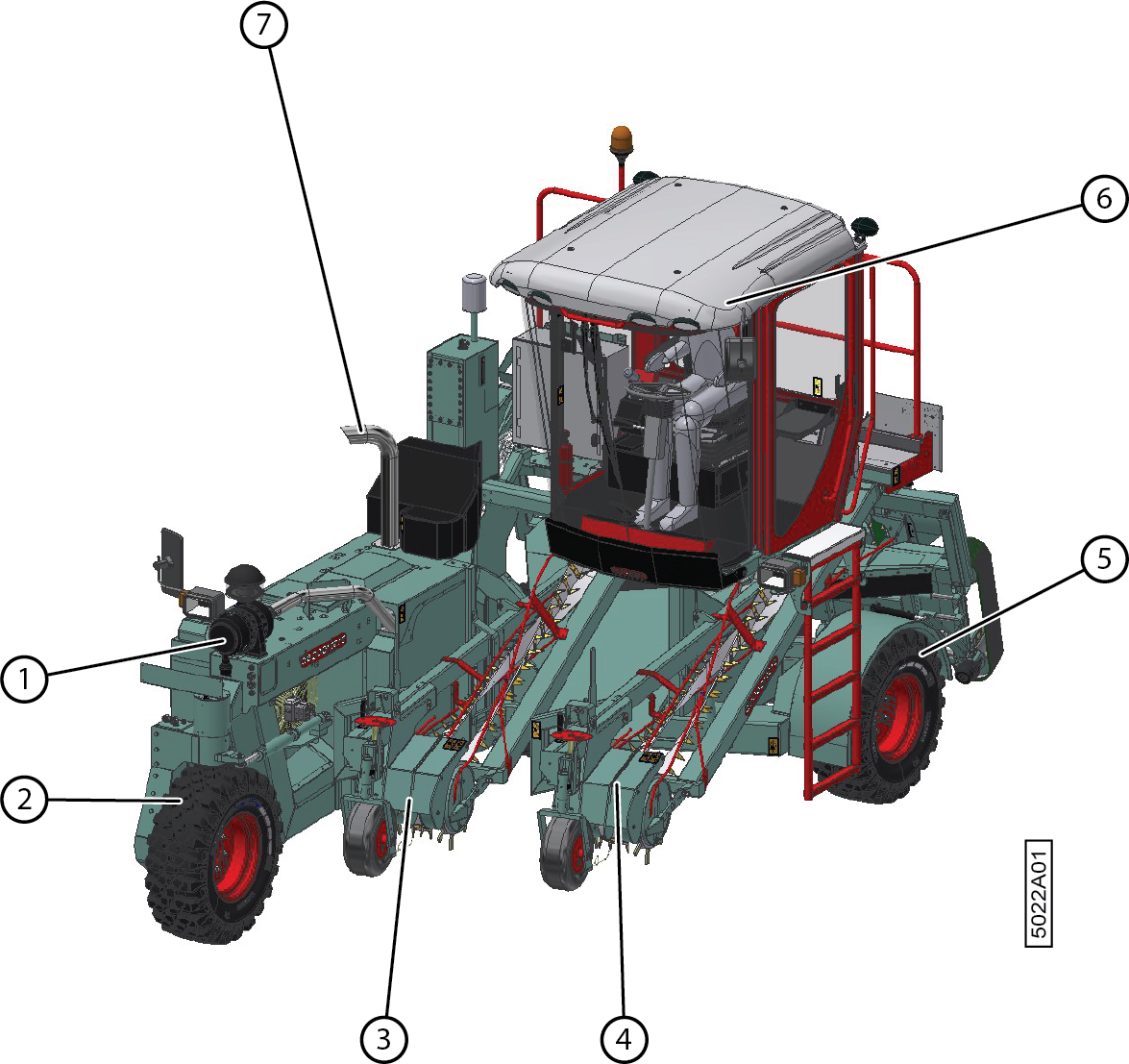

Figure 1. Front view of the machine

The following items are important for the optimal operation of the machine.

Nr. Description More information
1 Air filter with pre-filter For optimal operation of the diesel engine
2 Right-hand pick-up Fixed position
3 Left-hand pick-up Moveable to the left (field) and to the right (road)
4 Ladder For access to the cabin
5 Cabin Workplace during normal operation
