Machine data

Data Explanation
Type DRAHY
Engine DEUTZ TCD 3.6 L4
Power 74.4 kW
Weight 4700 kg
Height 3745 mm
Width 2550 mm
Length 5512 mm
Ambient temperature 0 °C to 40 °C
Relative humidity 0 to 100%
Noise level

< 70 dB in the cabin.

> 80 dB outside the cabin, at the side of the engine at full speed

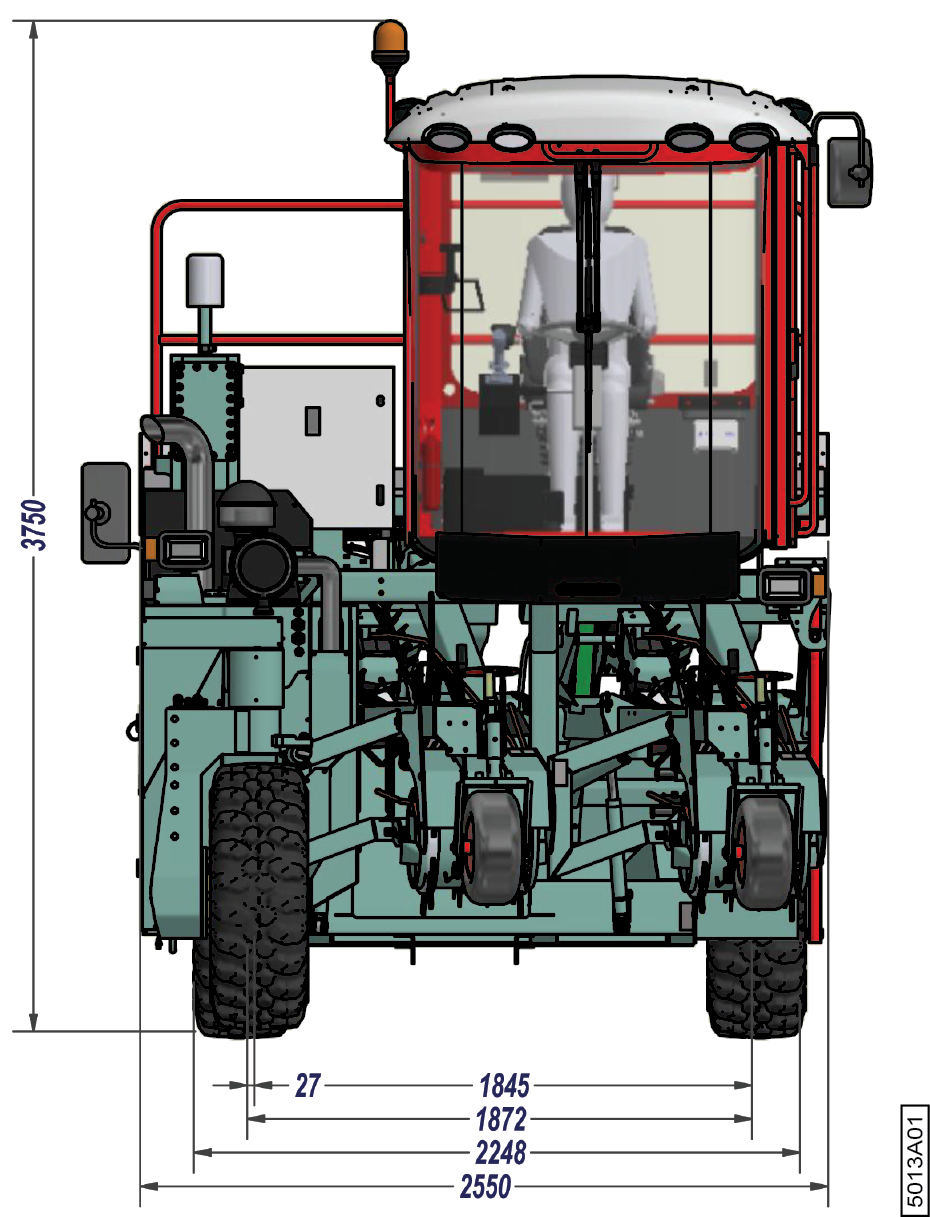

Figure 1. Dimensions (width and height)

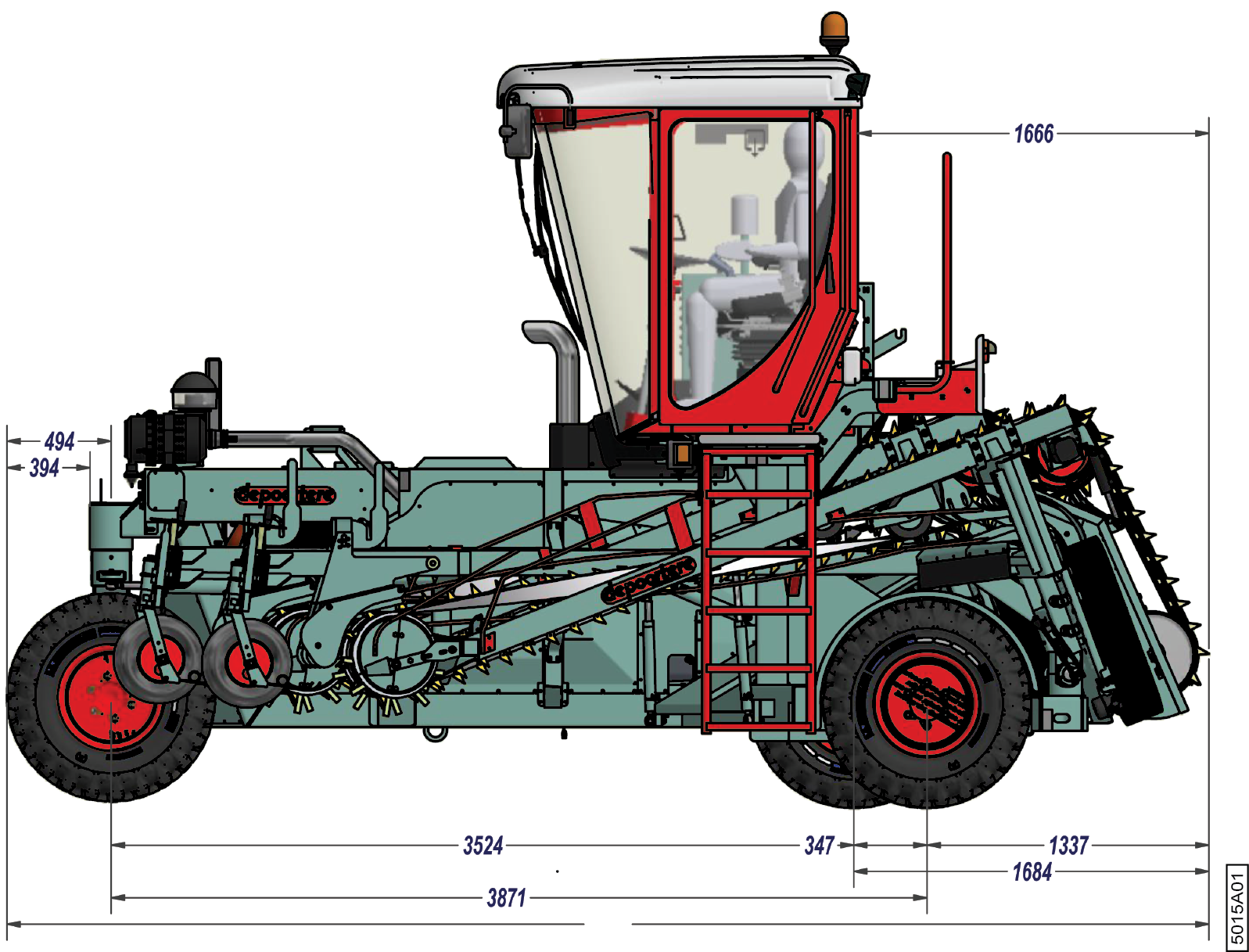

Figure 2. Dimensions length
