The flax-laying section

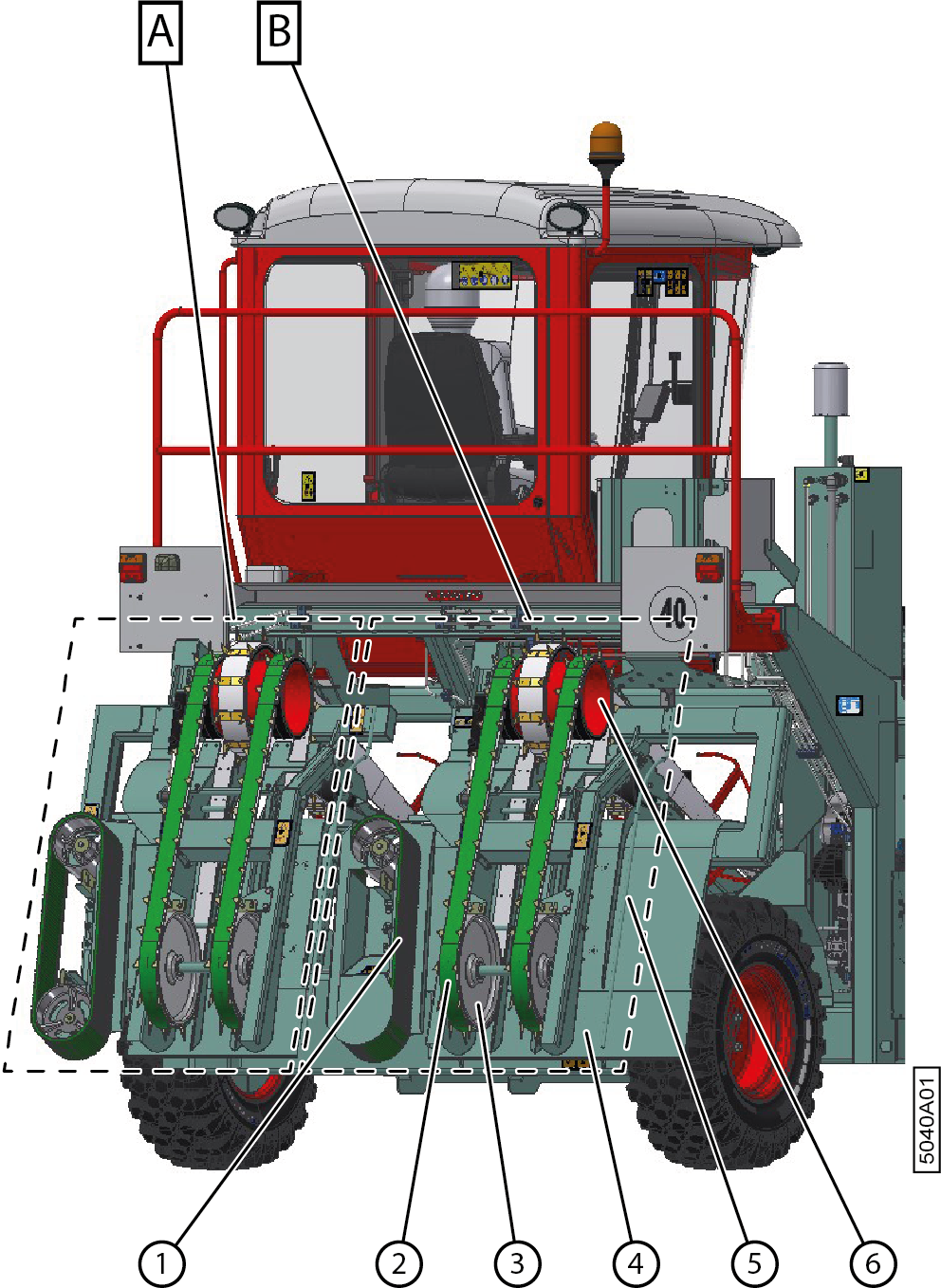

The left-hand flax-laying section [A] can move horizontally, depending on the desired distance between the deposited swaths. The right-hand flax-laying section [B] has a fixed position on the machine.
The distance between the lower belts (1) determines the distance between the swaths. The drive wheel (6) drives the conveyor belt of each pick-up, as well as both flax-laying belts (2). The non-driven wheel underneath, just like the drive wheel, is equipped with scrapers.
The flax is guided towards the ground between the guide plate (4) and the profiles (5). In the event of a blockage, the distance between the guide plate and the non-driven wheels can be increased.
| Nr. | Description | More information |
|---|---|---|
| 1 | Lower belt | Ensures that the bottom of the flax is well-aligned |
| 2 | Flax-laying belt | Deposits the flax on the field. |
| 3 | Non-driven wheel | This wheel is not driven and is synchronised with the flax-laying belts. |
| 4 | Guide profile | This profile guides the flax onto the field. |
| 5 | Guide plate | This profile guides the flax onto the field. |
| 6 | Drive wheel | This wheel that drives the flax-laying belts, is driven by a hydraulic motor. |
