Layout

The arrow shows the driving direction of the machine, The machine consists of:

  • Flax-laying section (1)
  • Spreading tables (2)
  • Cabin (3)
  • Picking element (4)

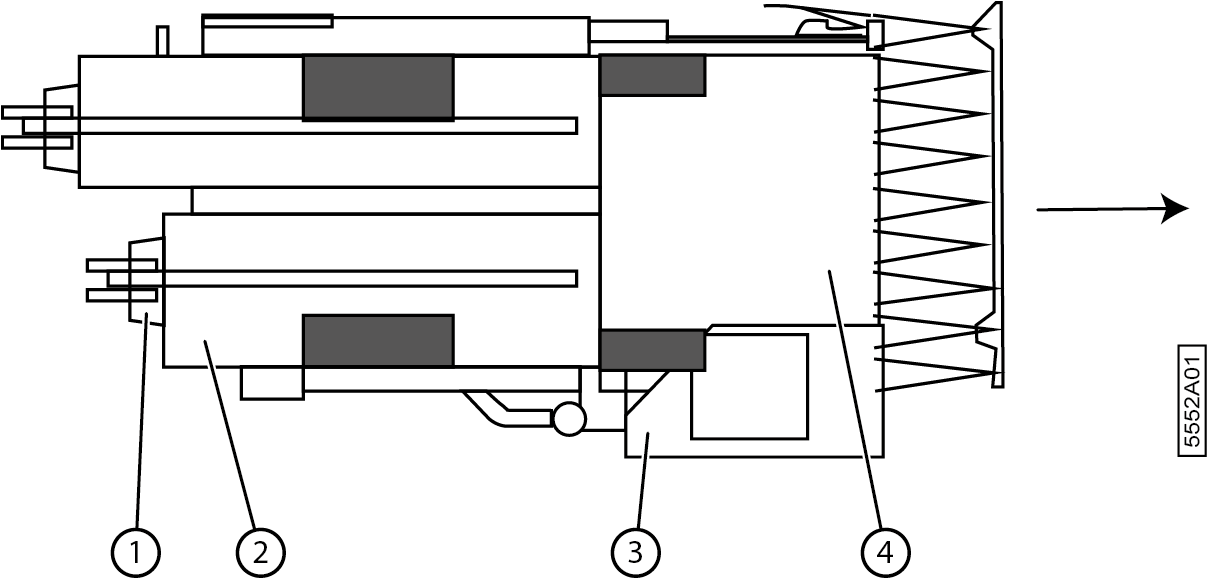

Figure 1. Layout of machine
